Introduction

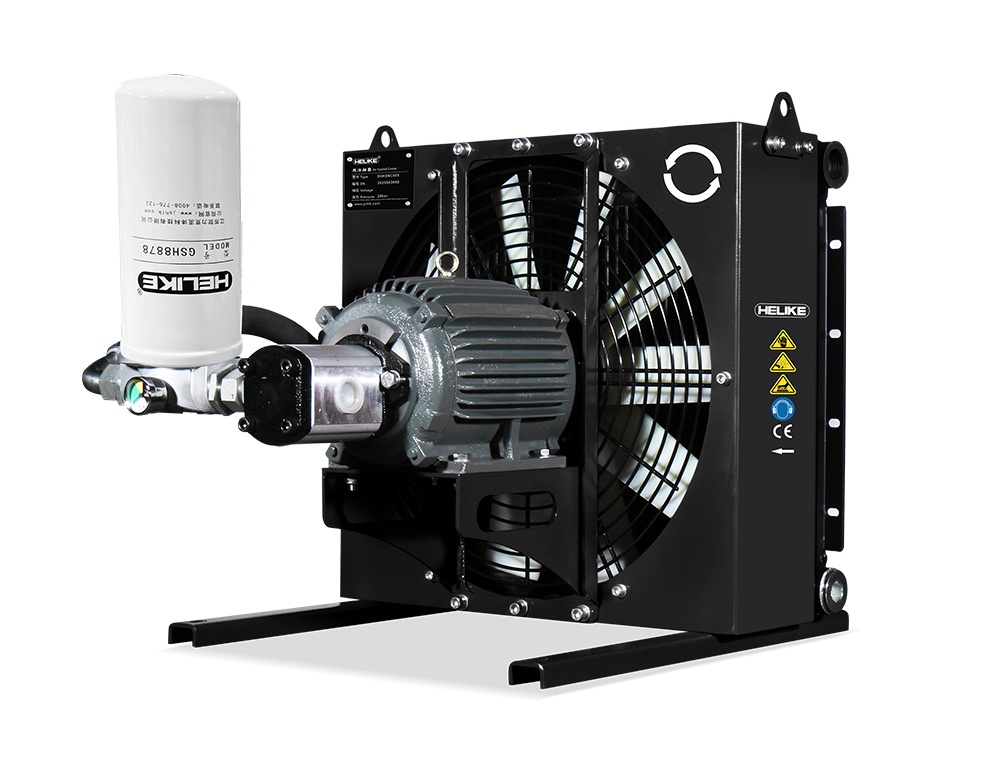

The motor is the power core of an air cooled oil cooler. Once the motor fails or the equipment appears abnormal start and stop, the cooling system will completely stop working, bringing huge risks to hydraulic machinery. Sudden shutdown during operation will even trigger equipment alarms and safety hazards. This guide focuses on motor faults and irregular start-stop problems, sorting out causes, inspection methods and effective solutions.

Motor Cannot Start at All

When you turn on the power, the motor does not respond at all. This fault is mainly related to power supply, circuit and control components. Common reasons include power cut, broken wires, damaged switches and burned-out motor coils.

Solutions: First check the external power supply and power switch. Inspect all connecting wires for breakage or looseness. If the motor coil is burned out, replace the motor assembly directly by professional technicians. Do not disassemble the motor privately.

Motor Runs with Overheating & Burning Smell

If the motor body gets extremely hot during operation and gives out an obvious burning smell, it means the internal coil is overloaded or short-circuited. Long-term overheating will burn down the motor in a short time.

Solutions: Stop the equipment immediately and cut off the power. Check whether the fan is stuck and causes motor stalling. Test the internal circuit for short circuit. After troubleshooting, do not restart the machine until the motor cools down completely.

Frequent Automatic Start and Stop

The cooler keeps starting and stopping repeatedly without manual operation. This fault is usually caused by loose wiring, damaged control relays or faulty temperature control sensors. It will greatly damage the motor and shorten the service life.

Solutions: Check all wiring connectors and fasten loose terminals. Replace aging or invalid control relays. Calibrate or replace faulty temperature sensors to ensure normal signal transmission.

Fan Stuck Leading to Motor Jam

Accumulated dirt, foreign matters entering the fan blade gap or bearing locking will make the fan stuck. The motor will be forced to bear extra load, and finally stop running or burn out.

Solutions: Cut off the power first before inspection. Clean foreign matters around the fan blades. Refuel or replace locked bearings. Rotate the fan manually to confirm it runs smoothly before restarting the equipment.

Protection Device Trips Frequently

Most air cooled oil coolers are equipped with over-current and over-temperature protection devices. Frequent tripping means the equipment is in abnormal working state, such as circuit leakage, motor overload or high ambient temperature.

Solutions: Check for circuit leakage and current overload. Improve the on-site ventilation environment to reduce ambient temperature. Do not forcibly lock the protection device, otherwise it will cause safety accidents.

Routine Inspection Recommendations

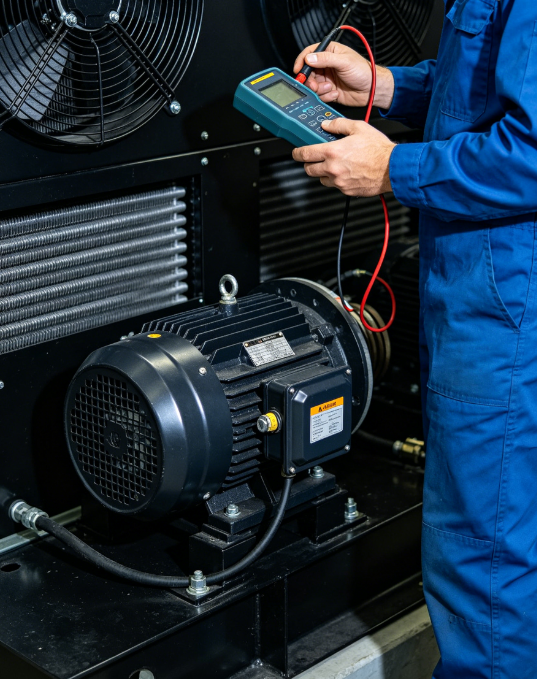

The motor and control system need regular focused inspection every month. Timely handling small circuit problems and foreign matter jams can avoid major faults. For complex motor failures and part replacement, you can turn to our professional team. Please [contact us] to learn more product and technical services.
