Introduction

Overheating has long been one of the most challenging issues facing hydraulic systems, construction machinery, injection molding equipment, and industrial air compressors. When hydraulic oil is exposed to excessively high temperatures for extended periods, it accelerates seal degradation, reduces equipment efficiency, and can even lead to sudden downtime and production losses. As practical cooling equipment, air-cooled oil coolers are widely used in the industrial sector due to their simple design and low maintenance costs. However, many buyers make the wrong choice due to a lack of specialized knowledge. This guide provides practical selection methods, ranging from simple estimates to professional calculations. After reading it, you will have a clear understanding of which cooler is best suited for your hydraulic system.

Power Loss Estimation (Most Common)

This method works best when the system is already running and you know its input power.

Basic formula:

text

Q_loss = P_input × (1 – η)

Where:

Q_loss = heat generation (kW) – this is the cooling capacity you need

P_input = total input power of the hydraulic system (kW)

η = overall system efficiency

Typical efficiency values:

System type Efficiency (η)

New, well-designed 0.80 – 0.85

Average industrial 0.70 – 0.75

Old or poorly maintained 0.60 – 0.65

Example:

A 30 kW hydraulic power unit with average efficiency (η=0.75)

→ Q_loss = 30 × (1 – 0.75) = 7.5 kW cooling capacity required.

Quick rule of thumb: If you have no detailed data, estimate Q_loss as 30~50% of the motor power.

If the cooler is too small for the flow, it creates excessive back pressure.

High back pressure can damage seals and reduce pump efficiency.

Typical flow ranges for air cooled oil coolers:

Always add a 20% safety margin for systems with flow spikes (e.g., mobile hydraulics).

Common Selection Mistakes to Avoid

Many users focus only on oil flow rate while ignoring the actual working pressure of hydraulic systems. If the cooler cannot bear the system pressure, oil leakage and equipment damage will happen easily. Besides, ambient temperature is often overlooked. Products working outdoors or in high-temperature workshops need enhanced heat dissipation performance. In addition, insufficient installation space will block air circulation, so you need to measure the installation size in advance before purchasing.

Three Core Selection Parameters

Three technical parameters directly determine the matching effect of the cooler.

1. Working Pressure: Our products are divided into low-pressure, medium-pressure and high-pressure series. High-pressure models are recommended for heavy-duty machinery and large hydraulic stations.

2. Oil Flow Rate: Confirm the actual flow of your hydraulic pump, and pick a cooler whose rated flow fully meets system demands.

3. Heat Dissipation Capacity: Calculate the total heat generated by equipment, and reserve a performance margin according to the local maximum ambient temperature.

Selection by Application Scenarios

Different working environments require different types of coolers. For mobile devices like excavators and loaders, air cooled oil coolers are the best choice because they need no water supply. Standard models with basic protection grades are suitable for indoor fixed machines. If your equipment runs in dusty, rainy or corrosive outdoor areas, please choose products with high IP rating and anti-dust fan covers.

Our Products & Custom Service

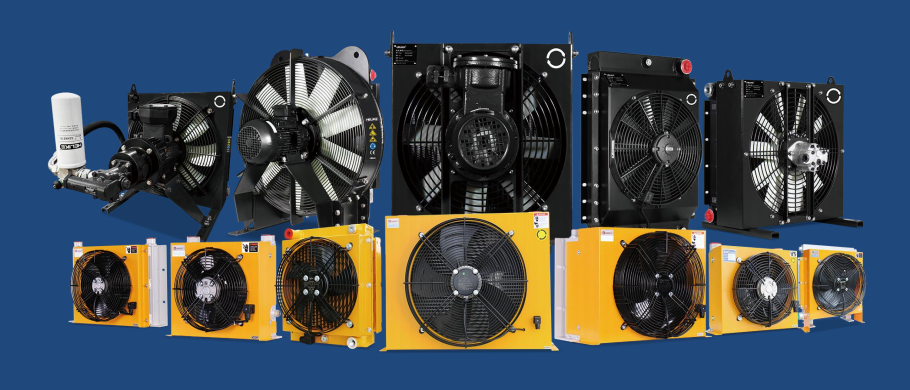

Our company supplies full-range standard and customized hydraulic air cooled oil coolers for global clients. All items have passed CE certification and run stably under extreme temperature and pressure. We also provide personalized customization on size, interface and heat dissipation power for special working conditions.

Conclusion

Always check working pressure, oil flow rate and heat dissipation capacity first, and combine on-site environment to make a comprehensive decision. If you have questions about model selection or customized solutions, please contact our professional team via [our website] to get a free technical proposal and quotation.
