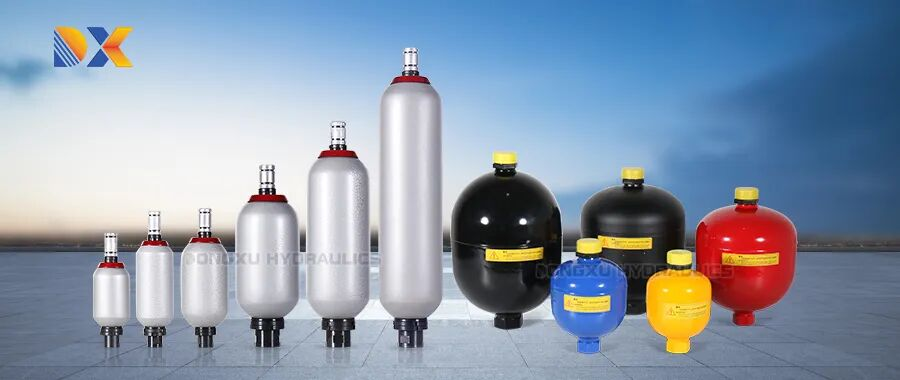

There are many types of accumulators, including common varieties such as bladder-type, diaphragm-type, and piston-type. Each type differs in structure, performance, and suitable applications. Many people are unsure how to choose the right one during the selection process. Blindly selecting an accumulator not only prevents it from functioning properly but also increases costs and leads to malfunctions. Today, we’ll break it down by type and show you how to select the right accumulator for your specific operating conditions!

1. Bladder-type Accumulators: The Top Choice for Low-Pressure, High-Frequency Energy Storage

Structural Features: The core component is a bladder, which divides the interior of the accumulator into a gas chamber and an oil chamber. When pressurized, the bladder expands to store hydraulic energy; when energy is released, the bladder contracts to force out the hydraulic fluid. The design is simple, compact, and lightweight, with excellent sealing performance that effectively isolates the gas from the hydraulic fluid, preventing gas from dissolving in the oil.

Key Advantages: Fast response time, suitable for high-frequency, low-flow energy storage requirements; Compact size, light weight, and flexible installation make it suitable for small equipment and mobile hydraulic systems; effective isolation of gas from hydraulic fluid, fast response, excellent sealing, minimal leakage, low gas loss, and low maintenance costs.

Applications: Low-pressure hydraulic systems (rated pressure typically between 10–31.5 MPa) and high-frequency energy storage applications, such as machine tools, injection molding machines, small cranes, and hydraulic elevators; Suitable for applications requiring rapid response and limited installation space.

Precautions: Not suitable for high-pressure or high-flow applications; the bladder is prone to aging and requires regular inspection and replacement; must not be used with hydraulic fluids containing particulate contaminants, as this may damage the bladder.

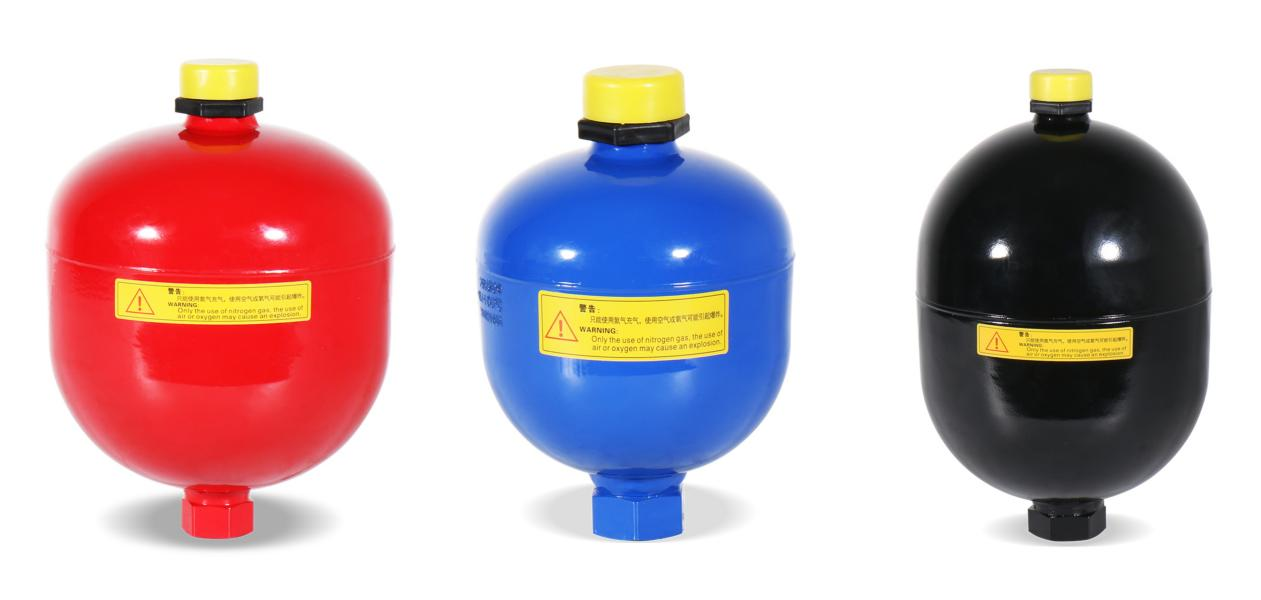

2. Diaphragm Accumulators: The Top Choice for Precision and High-Pressure Applications

Structural Features: The core component is a diaphragm, which divides the interior of the accumulator into a gas chamber and an oil chamber. The diaphragm is made of corrosion- and heat-resistant materials, offering excellent sealing performance that completely isolates the gas from the hydraulic oil. The design is compact, with fast response times and high precision.

Key Advantages: Fast response time and high precision, making it suitable for precision hydraulic systems; high pressure resistance (rated pressure up to 330 bar), excellent sealing performance, no leakage, and minimal gas loss; small size, compact structure, and light weight, making it suitable for precision equipment with limited installation space.

Applications: Precision hydraulic systems and high-pressure applications, such as aerospace, precision machine tools, and hydraulic testing equipment; suitable for operating conditions that demand high energy storage precision and sealing performance.

Considerations: Small capacity, unsuitable for high-flow energy storage requirements; diaphragms are prone to damage and cannot withstand severe impacts; high maintenance costs, as diaphragm replacement is difficult.

Selection Summary:

   Choose bladder-type accumulators for low-pressure, high-frequency, and compact applications; choose diaphragm-type accumulators for precision, high-pressure, and high-seal-integrity requirements; choose piston-type accumulators for high-pressure, high-flow, and harsh operating conditions. As a hydraulic machinery manufacturer integrating design, development, production, sales, and service, Dongxu Hydraulics has deep expertise in the hydraulic field. We specialize in various hydraulic components, including accumulators, and can provide high-quality accumulator products and professional selection support tailored to a wide range of industry applications. When selecting an accumulator, in addition to considering the type, you must also comprehensively evaluate factors such as the system’s operating pressure, flow rate, operating conditions, and installation space to ensure you choose the most suitable accumulator. If you are unsure how to proceed, please feel free to contact Dongxu Hydraulics. We will leverage our robust technical expertise and extensive industry experience to provide you with professional selection advice!
